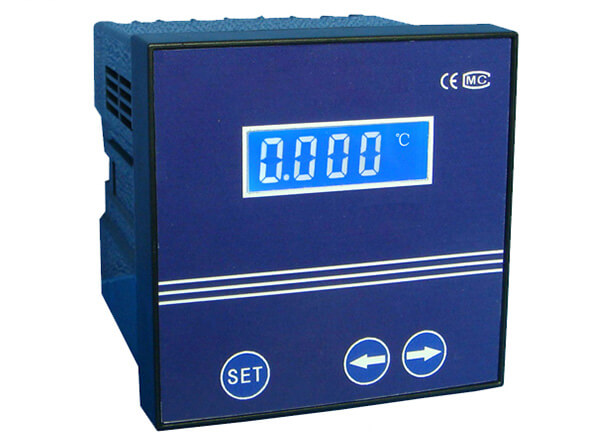

FU8X6X DC 4-20mA output temperature digital display meter
FU8X6X series DC4-20mA output temperature digital meter has replaced the traditional digital meter products. This product has the function of traditional products, also has programmable functions, DC4-20mA optional analog output, Optional RS485 communication interface port and the switching power output function. It has high accuracy, excellent EMC, and pleasing in appearance and so on.
Quick Links: Download Catalogue
Features
- Temperature digital meter
- DC4-20mA optional analog output
- Optional RS485 communication interface port
- High accuracy, excellent EMC and good appearance
- Switching power output function
optional designs
Technical Parameter
| 1 | Programmable | Address, baud rate and other parameters. |
| 2 | Accuracy | 0.5 class |
| 3 | Display figures | 4 bits (4½ bits for DC) |
| 4 | Rated input | Temperature: PT100, J, K, T, E thermocouple. |
| 5 | Power supply | AC220V ± 20% or DC100-300V (customization) |
| 6 | Power consumption | <3VA |
| 7 | Insulation strength | 2KV/Min. 2mA |
| 8 | Insulation resistance | ≥100MΩ |
| 9 | MTBF | ≥50000Hrs |
| 10 | Working environment | Temperature: -25 to +55°C Humidity: ≤98%RH, without condensation |
| 11 | Real-time output | DC4-20mA, load capacity: ≤400Ω |
| 12 | Data output | RS485 port (Modbus-RTU protocol) |
| 13 | Switching input | Remote signal input (self power supply): AC or DC 220V |
| 14 | Switching output (self-control) |
Normally open contact output: AC 250V/DC 30V, 5A |

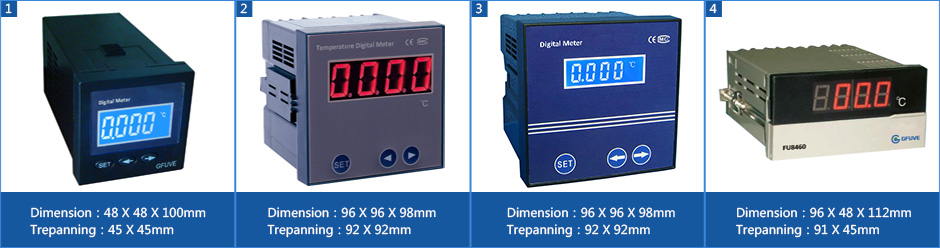

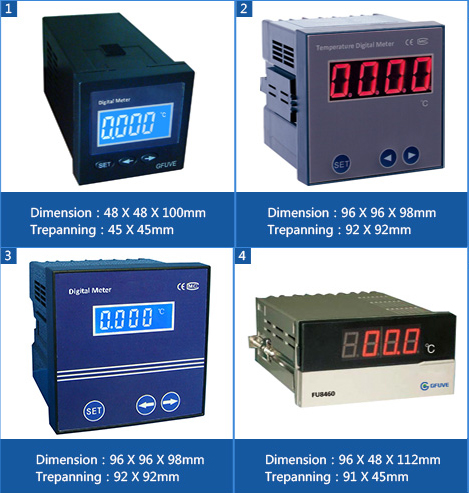

Model description
| FU8 - dimension - product code - 6 - display | |
|---|---|
| Dimension code | 0: 48x48x100mm |
| 3: 96x96x98mm | |
| 4: 96x48x112mm | |
| Product code | 6: Temperature |
| Function code | 0: Display only |
| 1: RS485 | |
| 2: 1DO | |
| 3: 1AO | |
| 4: 1DO+RS485 | |
| 5: 1AO+RS485 | |
| 6: 1DO+1AO | |
| 7: 1DO+1AO+RS485 | |
| 8: 2DO+1AO | |
| 9: 2DO+RS485 | |
| Display | LED |
