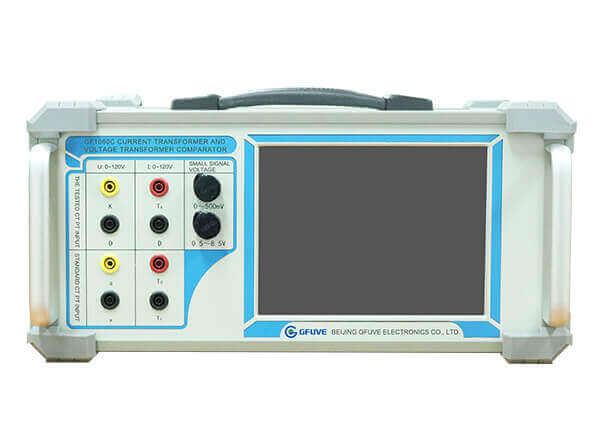

GF1060C SMART CT & VT COMPARATOR

CT & VT comparator

The GF1060C CT and VT comparator is a multifunctional, high-precision current and voltage transformer comparator. It is used to compare the secondary current signal or secondary voltage of a device under test or the digital information of a non-conventional transformer with the reference signal of a standard transformer. It is suitable for testing conventional electronic and non-conventional digital current & voltage measuring transformers. GF1060C comparator is strictly in conformity with IEC60044, IEC 61869, ANSI/IEEE C57.13, NBR6855 standards etc.

Request a quote
Quick Links: Download Catalogue


Standard

  • IEC61850-9-2;
  • ANSI/IEEE C57.13;
  • IEC60044-1, IEC60044-2,IEC60044-6;
  • GB1207-2006, GB1208-2006, GB16847-1997;
  • IEC61869-1,IEC61869-2,IEC61869-8,IEC61869-10,IEC61869-14;


APPLICATIONS

  • Electrical laboratory;
  • Metrological service center;
  • ISO17025 electrical laboratory;
  • Power engineering commissioning company;
  • Electricity power bureau & power company;
  • National Metrology and testing department;
  • Current transformer and voltage transformer factory;
  • Electrical Department of industrial and mining enterprises;


Features

  • 1. Using traditional transformer calibration equipment to achieve value transmission;
  • 2. Using a 24 bit AD chip and 512 times oversampling to maximize bandwidth expansion and improve accuracy;
  • 3. Adopting multi gear automatic switching and FIR filter to improve dynamic range and reduce signal-to-noise ratio;
  • 4. Customize the testing plan through programming and automatically determine whether the test data is qualified.
  • 5. Real time display of waveform, frequency, amplitude, phase and other data, facilitating comprehensive analysis of transformer performance;
  • 6. Built in industrial computer with 8-inch color touch screen, easy and convenient operation;
  • 7. Equipped with powerful operating software;
  • 8. Statistically analyze the average value, variation, extremum, and multiple errors of ratio difference and phase difference, which can be used to analyze transformers conduct comprehensive verification of stability and linearity;
  • 9. Can perform multiple harmonic analysis and verify the accuracy of each harmonic of the transformer;
  • 10. Can record and replay the entire testing process;
  • 11. Equipped with impedance compensation error function.


Main functions

  • 1. It is possible to verify the phase angle and ratio differences of traditional electromagnetic current transformers.
  • 2. Electronic current transformers (current sensors) with small signal output can be verified for ratio and phase angle differences.
  • 3. Work as a current transformer and voltage transformer reference comparator.


Parameters

Electrical parameters
Accuracy class 0.05%, 0.02%
Power supply AC 220V±10% or AC 110V±10% 50/60Hz
Input Range
Voltage range 100V/√3V, 100V, 110V/√3V, 110V, 120V/√3V, 120V, 150V, 220V (max 265V AC)
Current range 0.2A, 1A, 5A, 10A (max 12A AC)
Small signal 500mV range 0-500mV AC
Small signal 8.5V range 0-8.5V AC
Verification of traditional current transformers
Accuracy class 0.05 (Ratio error≤0.05%, Phase error≤2')
Standard current measurement range 1%~120%In, 0.05%RD (In=1A, In=5A)
Tested current measurement range 1%~120%In, 0.05%RD (In=1A,In=5A)
Verification of electronic current transformers
Standard current measurement range 1%~120%In，0.05%RD (In=1A or In=5A）
Tested small signal input voltage range 1%~120%In，0~8.5V (Un=333mV, 1V)
Verification of traditional voltage transformers
Accuracy class 0.05 (Ratio error≤0.05%, Phase error≤2')
Standard voltage measurement range 10%~120%In, 0.05%RD (Un=100/√3V,100V)
Tested voltage measurement range 10%~120%In, 0.05%RD (Un=100/√3V,100V)
Verification of electronic voltage transformers
Standard voltage measurement range 10%~120%In, 0.05%RD (Un=100/√3V,100V)
Tested small signal input voltage range 1%~120%In, 0~8.5V (Un=8.5V)
Tested small signal input voltage range 5%~120%In, 0~8.5V (Un=500mV)
Harmonic Output
Accuracy Ratio error: 0.1%Uh or 0.1%Ih (Uh is the effective value of the fundamental wave)
Phase error: 10' (2-21st)
LCD 8 inch touch TFT color LCD
Operating key Support mouse and keyboard(USB port)
Communication port USB, RS232, 10/100M Lan
Standards
Reference standards GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-2,IEC60044-6, IEC61869-1,IEC61869-2,IEC61869-8,IEC61869-10,IEC61869-14, IEC61850-9-2, ANSI/IEEE C57.13
Safety standards GB 4793.1-2007
EMC EMC standard 89/336/EEC
FCC Subpart B of Part 15 class A
IEC 1000-4-2/3/4/6
Mechanical parameters
Overall dimension (L×W×H)(mm) 410×200×340
Weight (kg) 8.5
Environmental conditions
Relative humidity Relative humidity 5%-95% not condensing
Operating temperature 0°C to +50°C
Storage temperature -20°C to +70°C
